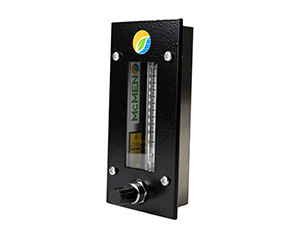

McMenon A6 Glass Tube Purge Meters

Glass tube purgemeter (Sizes 1, 3, 5, 10") with ¼" NPT connections, Snap-in tube and protective shield, ball check valve, needle valve at inlet or outlet. Optional alarms & constant flow regulator. Used for low flow measurements, purging, level measurements and fluid sampling systems.

The Series 10A6100 is Ideal for many low flow rate applications, such as purging control lines and instrument enclosures. as well as fluid sampling, liquid specific gravity, level measurements and other low flow applications.

The simple snap-in tube construction minimizes downtime for cleaning & replacement and the internal check valve restricts backflow when the tube is removed.

Optional one or two bi-stable alarms for contact  closure (or opening) on rising or falling flow

The Constant Differential Pressure Regulator maintains a constant flow with varying line pressures. It is available in stainless steel and viton with buna-n as an option.

By keeping a constant differential pressure across a valve the flow rate remains constant even if the pressure varies

Used with bubbler systems for measuring level

Supply Voltage:

120V ac ±15%, 45-65 Hz

Contact Rating:

Max. 250V; Max. 2A

Sensor Switch Cable:

Standard - 6.5 feet
Optional - up to 980 feet

Safety Classification:

The sensor(s) is intrinsically safe for Class I, Div. 1, Group A, B, C & D and Class II, Div. 1, Group E, F & G when connected with control amplifier mounted in non-hazardous location.
